CRANES AND HOIST
Cranes and Hoist
If you’re looking to buy your first overhead crane system or add another crane in order to expand your production capacities, get in touch with us today. Investing in a crane is a big decision, one that can help boost your company’s efficiency and smoothen workflows.

We offer foundation mounted jib cranes, cantilever wall mounted jib cranes, and Bridge  cranes among others to ensure that no job is too big.

Check out the cranes and hoists below and for individual specifications. You can always contact us at 888-792-9995 for more information. Our experts are happy to guide you.
Floor Mounted Jib Crane
  • Capacity up to 5 Tons
  • Heights & spans to 25’
  • Heavy duty gusset & base plate
  • Rigid box type head section
  • Adjustable Lower roller cage
Foundation Mounted Jib Cranes
  • Capacity up to 5 Tons
  • Heights & spans to 25’
  • The gussets are removed and column is Extended into the foundation
  • This option allows for floor space
  • Heavy wall pipe, rigid box head section
  • Rotates on tapered upper roller bearing
Sleeve Mounted Jib Crane
  • Capacity up to 5 Ton
  • Spans & heights to 225’
  • The column is inserted into sleeve
  • Allows for more floor space
  • Multiple sleeves can be purchased for one Crane
  • Heavy wall pipe, rigid box head section
  • Rotates on tapered upper roller bearing
Cantilever Wall Mounted Jib Crane
  • Capacity up to 3 Ton
  • Spans up to 25’
  • I Beam Construction
  • Low Headroom design
  • Rugged Teflon bushings
Overbraced Ti Rod Wall Mounted
JIB Crane
  • Capacity up to 3 Ton
  • Spans up to 25’
  • I Beam Construction
  • Low Headroom design
  • Rugged Teflon bushings
Pillar Mounted JIB Crane
  • Capacities from ½ Ton to 2 Ton
  • Heights & spans up to 29’
  • Foundation not required-Design allows for floor anchors & overhead attachments
  • Drop Cantilevered version available to eliminate obstruction issues
  • Bolt together construction of vertical & horizontal beams
  • Consists of (2) mounting plates & bearings

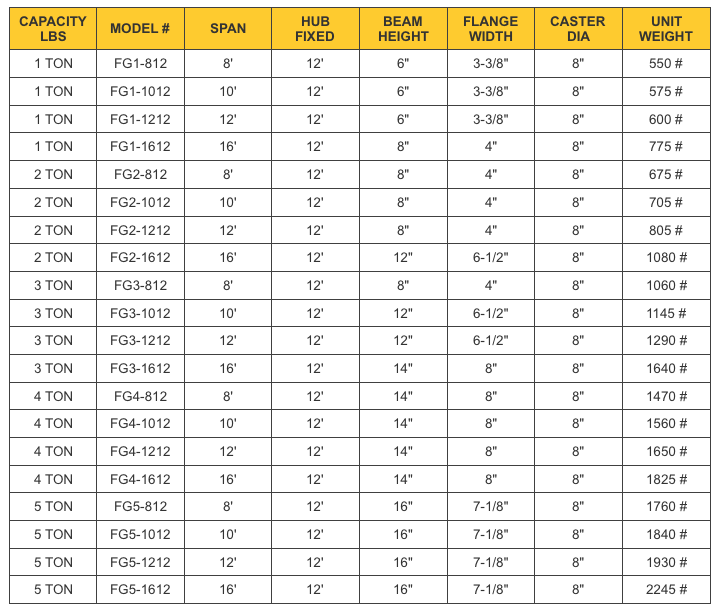

FG-Fixed Height Gantry Crane
1 Ton – 5 Ton Capacity
Gantry Crane is a good choice when you are being cost efficient and need a more versatile crane.  Easily move around to use many places and also less expensive than a permanent structure.  This is available 1 Ton to 5 Ton.
TG-Telescoping Gantry Crane
1 Ton – 5 Ton Capacity
Telescoping Gantry Crane conveniently provides adjustable heights and with the wheels, enables to move around your facility and lift materials anywhere.  When you don’t have to use a lift on a regular base, this is a perfect choice.
+Effective 11/15.
Note: Includes (4) Steel swivel casters with brakes.
Note: Standard wheel base on units above 5'-6"
Note: Includes (2) Adjustable Pullers"

CONSULT FACTORY FOR
 TAG LINE KITS
MODIFIED SPANS & HEIGHTS
 HOISTS & TROLLEYS
POLY & V-GROOVE CASTERS

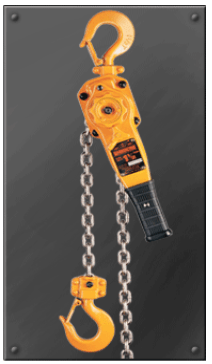

Hoist
Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. Rated the number 1 selling lever hoist in the U.S., these hoists can be used horizontally, vertically, inverted or at any other load angle and have the strength to get the job done.
  • Capacities 3/4 Ton through 9 Ton
  • Compact design makes it a perfect fit for use in tight quarters
  • Steel body is more durable yet lighter in weight than die cast aluminum models
  • Revolutionary freewheeling offers one handed operation
  • 360 degree handle rotation and pivot & swivel top hook for easy rigging
3 Phase Hoist
Harrington's (N)ER enhanced features three phase electric chain hoists are equipped with the latest technology in the market today. All models include a low headroom, lightweight body with a fan-cooled motor, standard thermal motor protection and a count hour meter for preventive maintenance. A secondary mechanical load brake is an additional features on ER models only.

  • (N)ER capacities 1/8 Ton through 5 Ton
  • (N)ER capacities 8 Ton through 20 Ton - see (N)ER large capacity section for details
  • Smart Limit option is available on NER capacities 1/8 through 5 Ton
  • 60 minute, H4 rated motor for the most demanding applications
  • "The Guardian" Smart Brake Technology revolutionary DC current motor brake with electrical failsafe design and 10 year warranty
  • Adjustable dual speed via under-the-cover variable frequency drive
  • All standard models are UL listed to UL 1340 "Standard for Hoists"
  • Completely sealed body suitable for harsh indoor or outdoor environments- IP55 rated
  • Plug in pendant and power supply cords save time on set up and maintenance
  • Super strength, nickel-plated load chain is corrosion and wear resistant
  • 5 or 6 pocket load sheave improves chain life and promotes smooth lifting
ERCC 3-Phase Cylinder Control
Harrington's (N )ERCC enhanced features cylinder control electric chain hoists are ergonomically designed and include all of the features of our revolutionary NER/ER models. Available in single or dual speeds these user-friendly hoists have a 60 minute duty rating, H4 classification, thermal motor protection, extreme duty motor and "The Guardian" Smart Brake Technology. These are the perfect hoists for high repetitive assembly operations.


  • (N)ERCC capacities 1/8 Ton and 1/4 Ton
  • In-line grip for one-handed operation and user comfort
  • Operators free hand easily positions the load
  • "The Guardian" Smart Brake Technology revolutionary DC current motor brake with electrical failsafe design and 10 year warranty
  • Adjustable dual speed via under-the-cover variable frequency drive
  • Completely sealed body suitable for harsh indoor or outdoor environments - IP55 rated

TNER Theatrical 3-Phase
TNER Series theatrical chain hoists were designed using the latest technology for handling stage and theatrical equipment. These high quality, low-headroom, full-featured hoists provide reliable performance for use in theaters, concert halls, arenas and studios. The TNER has industry accepted speeds & conveniently fits in standard road cases.


  • TNER capacities of 1/2 - 2 ton
  • Complies with the German regulation BGV-D8
  • Meets CE Declarations
  • Sleek round body with no sharp edges
  • Grease packed gear box

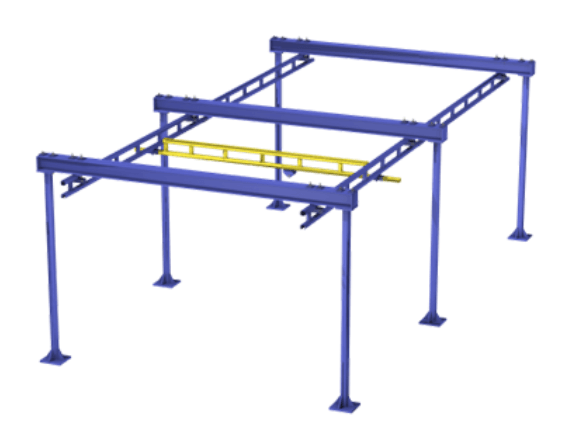

Free Standing Bridge Crane
Free Standing Bridge Cranes do not put stress on the building's overhead structure. Easier Installation, and make relocation in the future simple. Free Standing systems require a reinforced concrete floor of at least 6 inches.
  • Capacities from 150 to 4000 lbs
  • Rectangular Coverage with up to 34’ bridge and 124’ runway standard
  • Standard support distances of 20, 25, and 30 feet.
  • Doesn't require existing support structure
  • Smooth rolling surface.
  • Multiple track profiles and spanning capabilities.
  • Adaptable and flexible
